[Dales Cannon]

I de

I'm curious, what part of the image is AI-generated? Is this press even real? The cake is a lie!

I deleted #1's pooey in the background. No one needs to see that.



[oldcorollas]

She's home! Will get it out of the trailer and into the shed this weekend. Two jobs already planned for it.

nice!
Press or punch? or options?



[Dales Cannon]

nice!
Press or punch? or options?

Flypress but both depends on dies.



[oldcorollas]

Flypress but both depends on dies.

yes flypress
much faster than manual enerpac and can punch decent thickness if you give your its balls a decent swing



[Dales Cannon]

yes flypress
much faster than manual enerpac and can punch decent thickness if you give your its balls a decent swing

More precise too. I have a 25t hydraulic press as well. This has an open throat which lets me fold longer lengths of sheet.



[silentbutdeadly]

This has an open throat

Oh really!?



[Dales Cannon]

Oh really!?

Smoked too much as a young press.



[fjohn860]

Bleed fitting for my Marzocchi Bomber CR

Bit rough, but should do the trick.



[SummitFever]

Nothing more annoying than a bracket and spacers. Spacers needed to be thicker so I remade the entire thing as one piece. So much easier to reassemble. This piece is actually bike related. It's for my wife's ebike motor.



[Dales Cannon]

The guy I bought the flypress from has some dies he made for it. Radius bend jig, vee bend jig and so on. $150... sold.



[oldcorollas]

obviously not mine.. but pretty (except for the tab with hole near VIVO... why?)

https://www.pinkbike.com/news/vivos-xc-air-derailleur-is-a-piece-of-art.html

\/\/ ahh thanks @beeb , that makes sense



[beeb]

(except for the tab with hole near VIVO... why?)

At a guess, cage lock you can jam an allen key/multitool bit in while taking the wheel in or out...



[oldcorollas]

Measuring peoples...
Anyone other than Mitutoyo make these? (Starett?)
Had one at work and it's gone walkies, so need to replace, but $$..
Battery version = no

MITUTOYO 295-215

Digit readout, double Spherical, ratchet, 0-25mm, 0.01 and preferably 0.001 on the vernier..

Maybe only the big M makes them?



[fjohn860]

Measuring peoples...
Anyone other than Mitutoyo make these? (Starett?)
Had one at work and it's gone walkies, so need to replace, but $$..
Battery version = no

MITUTOYO 295-215

Digit readout, double Spherical, ratchet, 0-25mm, 0.01 and preferably 0.001 on the vernier..
View attachment 423529
Maybe only the big M makes them?

Mx (Measumax) maybe?



[dkselw]

Measuring peoples...
Anyone other than Mitutoyo make these? (Starett?)
Had one at work and it's gone walkies, so need to replace, but $$..
Battery version = no

MITUTOYO 295-215

Digit readout, double Spherical, ratchet, 0-25mm, 0.01 and preferably 0.001 on the vernier..
View attachment 423529
Maybe only the big M makes them?

The ones that have a 0.001 scale on the vernier are not easy to read. At least not with my eyes. I find the standard 0.01 resolution ones easier to read, unless I actually need um.



[oldcorollas]

Mx ( Measumax) maybe?

Sadly no, but they have a great value micrometer stand! $35..

The ones that have a 0.001 scale on the vernier are not easy to read. At least not with my eyes. I find the standard 0.01 resolution ones easier to read, unless I actually need um.

Not getting any easier for me either, and most here won't use it... or notice it

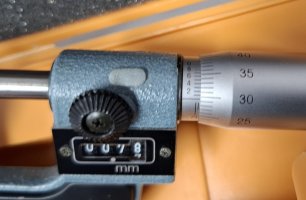

The 193-111 i have does and is appreciated (This is the flat anvil version)


For higher precision, have one of those fancy 0.1um digitals tucked away.. but it stays in office.

Hmm, other brand i have is TESA (digitmaster, 54.10000), but they seem to be vernier or digital only now



[oldcorollas]

Starett have a digit counter, but only in freedom units (0-1") not metric.. (T216XRL-1)

Hmm, maybe Mitutoyo is only option



[latheboy]

Mitutoyo is the only option!



[latheboy]

Having said that, I do have a Chinese set of mics 0 to 150mm that I'm happy with for stuff that's not mega important. You just need to cal them properly.
I have a Switzerland made 0-25 mics in microns but it was around $1500 in 1998
That's locked in my gun safe.



[Dales Cannon]

#1 was after some 150x5 aluminium flat to machine up a bracket. I was in Brendale so I went shopping. Nearest size was 160x6 so giving more room for machining but min purchase was half a length or 2m. He needed 150mm plus fixturing so 250mm. Bugger. Ah well it will always get used. $80. As I was doing the deal a guy wandered in to the adjacent counter after an offcut of 140x4. Sorry nearest size is 160x6, minimum length 2m... he vacillated. I said want to buy a metre of mine? So he gave me $40. I paid for 2m cut in half and thus was a great transaction! Guys at the counter were pissing themselves laughing. This never happens.
