I'm making a condenser controlled vapour management still so temps always below 100 and no pressure. The fittings are machined out of 304 and consist of a flange that a clamp goes around with a collar that inserts into the pipe. They're called tri clover, I don't think they have much use outside the food/beverage industry.
kegland.com.au

2 Inch Tri-Clover Ferrule | Welding Required | Distillation | Homebrew

This is the standard TC Ferrule widely used in breweries and wineries. Popular now as a brew hardware fitting with home brewers.
kegland.com.au kegland.com.au

Freediver said:
I'm making a condenser controlled vapour management still so temps always below 100 and no pressure. The fittings are machined out of 304 and consist of a flange that a clamp goes around with a collar that inserts into the pipe. They're called tri clover, I don't think they have much use outside the food/beverage industry.
kegland.com.au

2 Inch Tri-Clover Ferrule | Welding Required | Distillation | Homebrew

This is the standard TC Ferrule widely used in breweries and wineries. Popular now as a brew hardware fitting with home brewers.
kegland.com.au kegland.com.au
Click to expand...
Commonly used in vacuum systems for instruments (but difference may be presence of groove on the face?)
https://locoscience.com/collections/vacuum-fittings-1/?sort_by=manual

50mm to 2" NPT
https://locoscience.com/collections...0-flange-to-2-npt-male-vacuum-fitting-adapter

Copper 2" fitting
https://www.ebay.com.au/itm/1822831...ugAIdQVjplNbtMLxk1crThVbqGZA9zt_FlsOrqjZ0CefQ

Last edited:
oldcorollas said:
Commonly used in vacuum systems for instruments (but difference may be presence of groove on the face?)
locoscience.com

Vacuum Fittings

LoCo Science offers a large selection of high quality KF/NW vacuum fittings. All of our products are manufactured from sturdy corrosion resistant stainless steel and designed to meet ISO-KF standards. Whatever your projects needs we have the fittings necessary to get your new or existing project...
locoscience.com locoscience.com

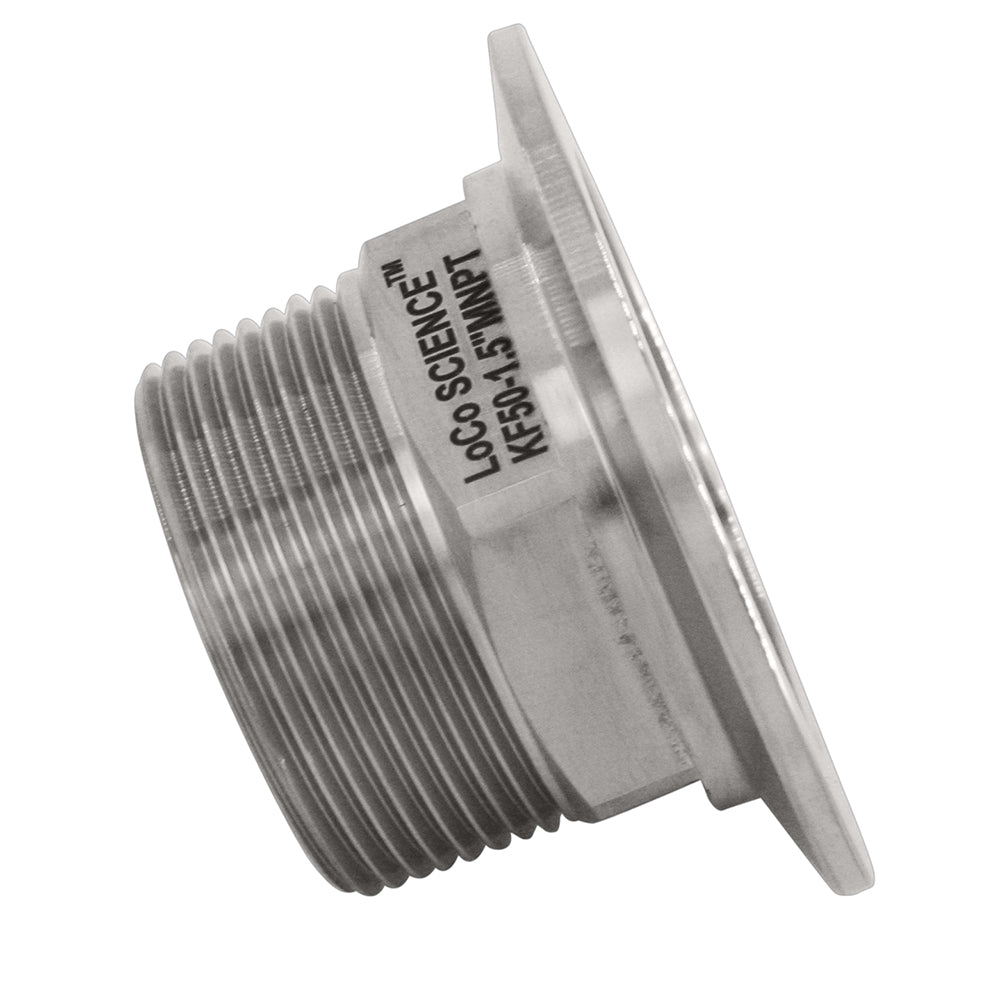

50mm to 2" NPT
locoscience.com

KF-50 to 2" NPT Male Vacuum Fitting | LoCo Science

The KF-50 flange to 2” NPT-Male adapter is designed for use in the construction of frontline vacuum plumbing and process system.
locoscience.com locoscience.com

Copper 2" fitting
www.ebay.com.au

2" Copper Tri-clover Sanitary Fitting or Dairy Tri-clamp Ferrule, 2 Inch | eBay Australia

Fits inside of a 2" ID copper pipe.
www.ebay.com.au
Click to expand...
They look pretty similar but my dog they're pricey. That website has tri clamps that look the same as the tri clover that they sell for food and bev but once again OUCH with the pricing
The copper fitting would be perfect but at 25 USD compared to 5 AUD for the stainless, with the number I'd need I could pay somebody to weld them up with the difference in price,

Last edited:
Freediver said:
They look pretty similar but my dog they're pricey. That website has tri clamps that look the same as the tri clover that they sell for food and bev but once again OUCH with the pricing
The copper fitting would be perfect but at 25 USD compared to 5 AUD for the stainless, with the number I'd need I could pay somebody to weld them up with the difference in price,
Click to expand...
you think this would be a fairly niche product but...
5stardistilling.com

2" Stainless Ferrule to 2" Copper Pipe - 5 Star Brewing & Distilling Supplies QLD

These fittings have been requested by the home builders to allow easy joining of Copper Pipe to Tri Clamp Fittings. 2" Stainless 304 Ferrule with Copper Pipe Adapter TIG Welded for Strength Copper Inside Diameter 52mm
5stardistilling.com 5stardistilling.com

silver solder/braze?

oldcorollas said:
you think this would be a fairly niche product but...
5stardistilling.com

2" Stainless Ferrule to 2" Copper Pipe - 5 Star Brewing & Distilling Supplies QLD

These fittings have been requested by the home builders to allow easy joining of Copper Pipe to Tri Clamp Fittings. 2" Stainless 304 Ferrule with Copper Pipe Adapter TIG Welded for Strength Copper Inside Diameter 52mm
5stardistilling.com 5stardistilling.com

silver solder/braze?
Click to expand...
dearer again. I've only got propane torches, I might have to upgrade to MAPP
Mattyp said:
If it was me I'd just bin all the copper do it in stainless and weld it all up. But that's kind of what I do for a job.
Click to expand...
Nah, it has to be copper, lots of copper. Copper does chemistry stuff in a still that makes things come out nicer. After it goes through a copper bubbler 2/3 of the vapour path gets packed with copper wool. This leads to a copper reflux condenser to control how much vapour goes through the copper lyne arm and into the copper shotgun condenser.
It's going to make a neutral spirit as clean as possible, then I've got a trick up my sleeve to get it cleaner.

Freediver said:
dearer again. I've only got propane torches, I might have to upgrade to MAPP

Nah, it has to be copper, lots of copper. Copper does chemistry stuff in a still that makes things come out nicer. After it goes through a copper bubbler 2/3 of the vapour path gets packed with copper wool. This leads to a copper reflux condenser to control how much vapour goes through the copper lyne arm and into the copper shotgun condenser.
It's going to make a neutral spirit as clean as possible, then I've got a trick up my sleeve to get it cleaner.
Click to expand...
Do we pay a deposit now? Or will you invoice out?

fjohn860 said:
No they don't, because they are a fiddly fucking pain in the arse*




*most of the time
Click to expand...
They are my preferred union for milk/dairy/food industry, it's the most hygienic and has the best fit up.
Unfortunately most of the time I'm dealing with putting new stuff into old systems so there ends up being about 4 different style unions. Then add European machinery with different tube sizes and fittings and it's just a bag of dicks. Like this Homo I installed the other week.

Mattyp said:
They are my preferred union for milk/dairy/food industry, it's the most hygienic and has the best fit up.
Unfortunately most of the time I'm dealing with putting new stuff into old systems so there ends up being about 4 different style unions. Then add European machinery with different tube sizes and fittings and it's just a bag of dicks. Like this Homo I installed the other week.View attachment 421152
Click to expand...
Your explanation is spot on and exactly the issue with them.

They are like the bottom bracket of the beverage industry.

oldcorollas said:
so many different types... https://www.idealvac.com/files/manuals/Common_Vacuum_Fittings-Selection_and_Assembly_Guide.pdf


if a tight push fit with copper heated, and won't get too hot in service, probably should be ok?
If need a 100% vapour seal... is there enough meat on the ferrule tube to machine a groove for a skinny O-ring?

swaging? 🙃
Click to expand...
If the ferules do end up being too loosey goosey then a couple of O rings might be a good idea. That would also give me the chance to easily change pipe lengths if I have to do some fine tuning.
I know there's some damn fine machinists on here that I can give a chuckle to when they hear I do that sort of thing with a file on a wood lathe.

The weather was good enough to get on the roof and replace the super dodgy flashing that worked fine for all rain except rain accompanied by a strong easterly.

I used that expanding foam goop on gaps on the ends to stop critters moving in.

Time will tell whether it handles the easterly weather.
